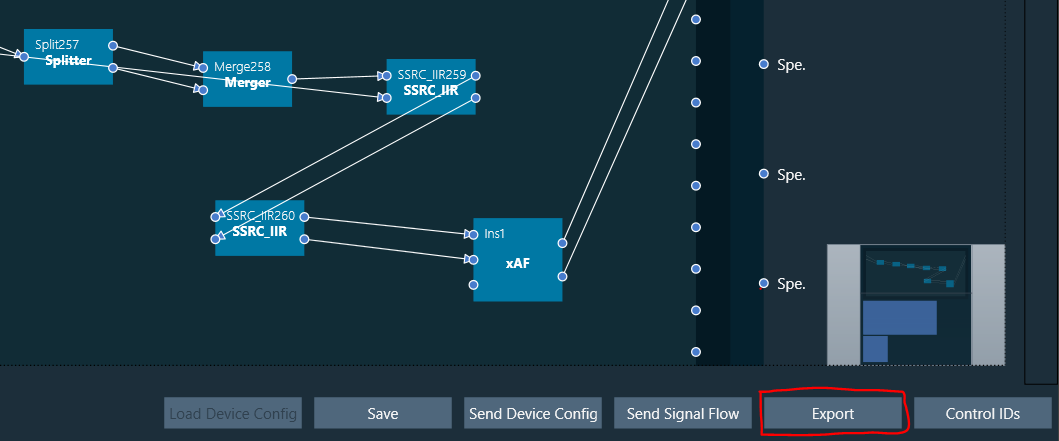

The device configuration data and the signal flow can be exported by clicking on the Export button at the bottom right corner of the device view.
*.Core files would be created for each Virtual Core available in the device. One *.route file will be created for Device routing data. One .mcd file will be generated for master control data and one .Signal Flow Designer file will be generated per instance per core.
- One core file per virtual core in the signal flow. This file describes:
- The core objects within the virtual core
- The routing within those objects
- The destination of the output pins of the virtual core
- One signal flow file per xAF instance
- This is the same legacy file
- One input device routing file:
- This basically describes how the device input buffers are connected to the virtual cores and/or the device outputs.
