All the application configurations are available in configuration files inside platform/adspsc573ez/config folder. Details of various configurations are given below.
Platform Configuration

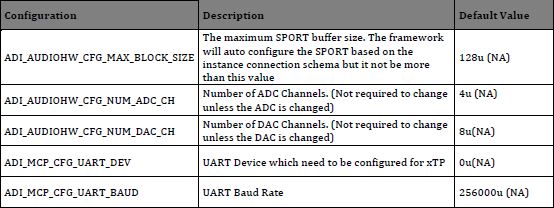

Platform configuration is available in adi_platform_config.h. The table below explains the relevant options.
XAF Configurations

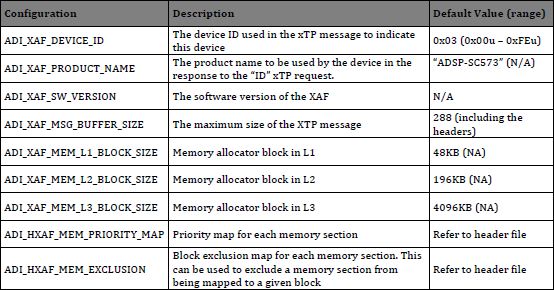

The configurations specific to XAF can be found in adi_hxaf_config.h. The following are the configuration values.
AAT Configuration

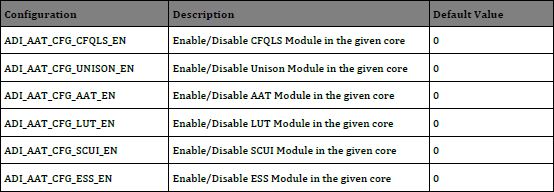

AAT algorithms are not added to the platform code in the default configuration. AAT modules can be enabled on a per core basis in adi_aat_config file. The following are the configuration values.
Framework Schema

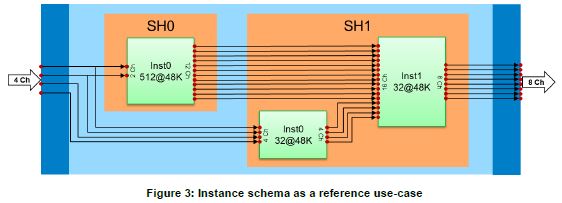

adi_fw_schema.c and adi_fw_schema.h configures how the various instances are connected. The framework is configured as given below in the release package as a reference use-case.

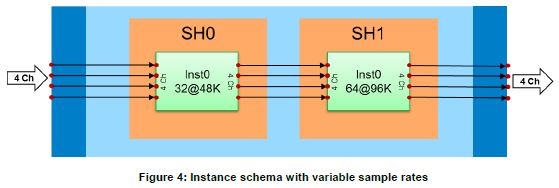

As a reference example to showcase variable sample rate support across xAF instances, there is another schema as a part of this release (adi_fw_schema.c_src and adi_fw_schema.h_src). Replace schema files with these files to compile framework for the below connection diagram.
Implementing Sample Rate Convertor
Framework defines a class CSampleRateConverter (in file SampleRateConverter.h) for sample rate convertor. A reference implementation of this class is present in SampleRateConverter.cpp which framework currently use for any sample rate conversion.
User can change this implementation to have his own version of SRC.
