Description:
The DC Blocker object is a simple first-order recursive highpass filter set to a very low corner frequency, such that DC offset is removed from the input.
Summary of AO:
- available in the Filter section of GTT
- supports all framework configurable sample rates and block lengths.
- supports both Win64 and GUL platforms.
Inputs and outputs:
- The number of channels is configurable from GTT from 1 – 255 (Default 1)
Tuning Parameters:
| Name | Unit | Format | Range | Default |
| Corner Frequency | Hz | Float | 0.0f to 20.0f | 5.0f |

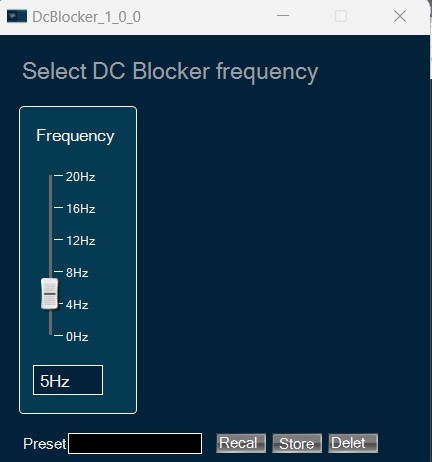

Native Panel
DCBlocker AO has native panel. The native panel window has a slider bar for setting DC Blocker frequency. Native panel can be opened by double-clicking on the DcBlocker object in the SFD.
