String Lookup Table

  • 2 mins read

The String Lookup Table (LUT) is used to configure string values for audio objects and store the string data in the signal flow design in GTT. You can retrieve the string data using the StringLUT API.

Based on additional parameters configured, the panel will display all state variables, and you can adjust the values.

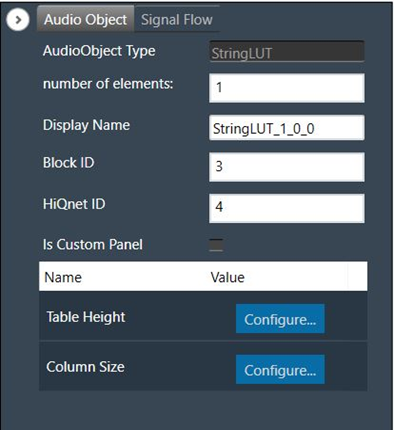

String Lookup Table Properties

Details about String LUT audio object properties and functionality.

Properties Descriptions

Number of elements

 This property is used to configure the number of string columns in a table.

The default value is 1. The minimum value is 1 and 10 is the maximum value.

Display Name

Display name of the String LUT audio object in signal flow design. It can be changed based on the intended usage of the object.

Table Height

This parameter corresponds to the number of rows of each table which can be configured through additional parameters window.

  • The default number of rows of each table is 2.
  • The minimum number of rows of each table is 2.
  • The maximum number of rows of each table is 200.

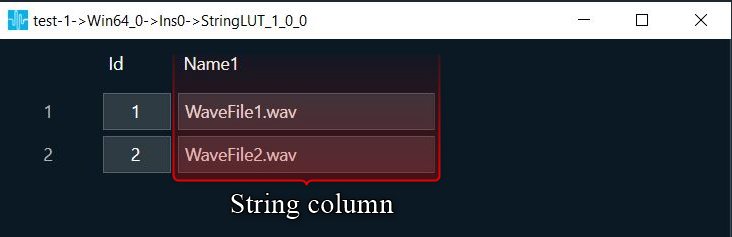

Column Size

This parameter corresponds to the no of characters allowed in each string column (Name1, Name2), which can be configured through additional parameters window.

  • The default number of characters for each string column is 56.
  • The minimum number of characters for each string column is 5.
  • The maximum number of characters for each string column is 56.
