Launch Native Panels

To launch a native panel, a device must be added to the Room.

Create a new panel.

For information on how to create a panel, see chapter Create New Panel.

Add a button to your panel.

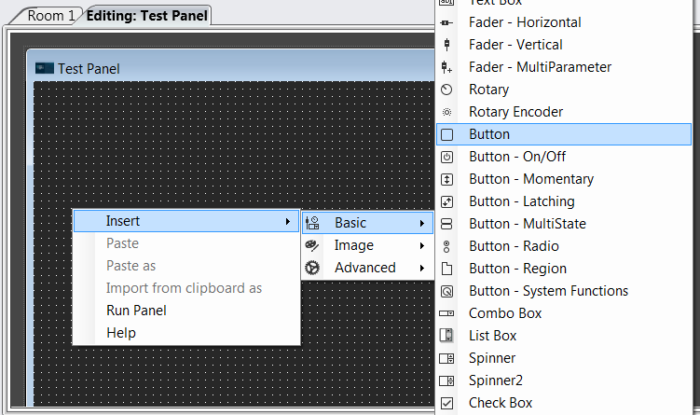

Context Menu: Add Button

The added button will be displayed in the Test Panel area.

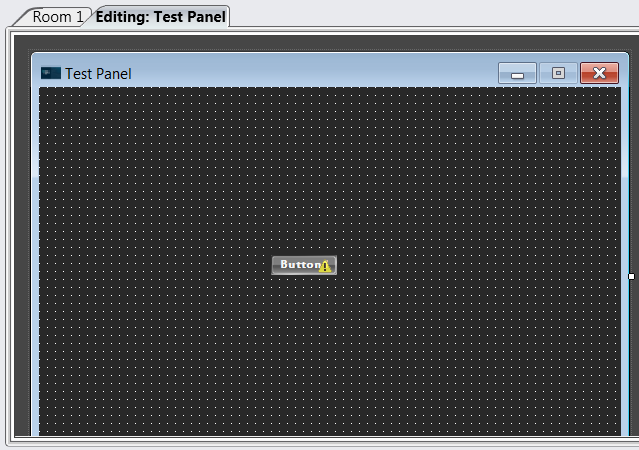

Added Button in Test Panel Area

Click on the button.

The Properties area below the Test Panel area will change.

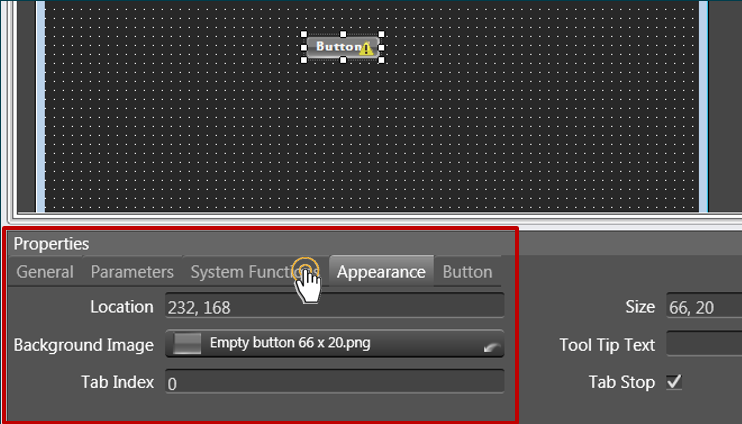

Button Properties: Appearance

Click on the Systems Functions tab.

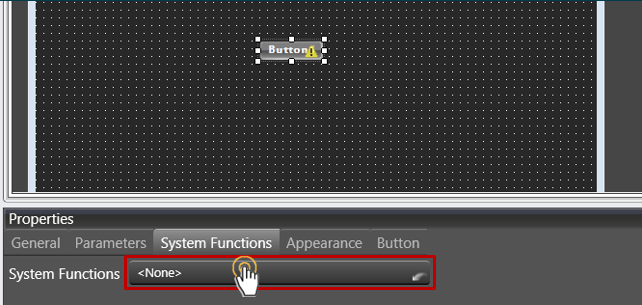

Button Properties: System Functions

Click on <None>.

The System Functions Editor will be displayed.

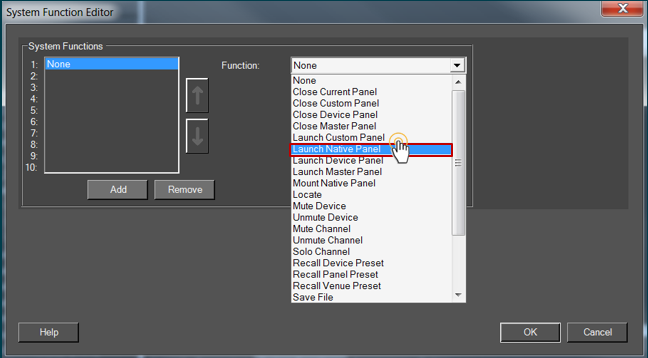

System Functions Editor

Select Launch Native Panel from the Function dropdown menu.

Select the type of the native panel you want from the Native Panel dropdown menu.

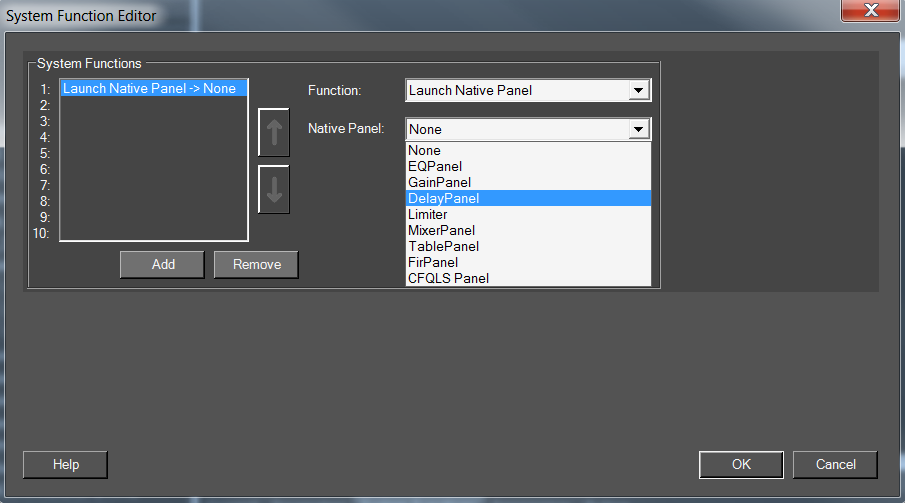

System Functions Editor – Dropdown

You can select any type of native panel. In this example, DelayPanel was selected to illustrate the further
process.

The Delay Panel Configuration dialog will be displayed.

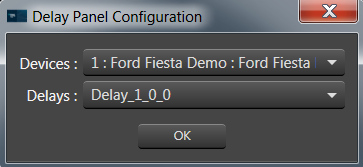

Delay Panel Configuration

Click OK.

In the Run mode, the DelayPanel will look like the one shown below.

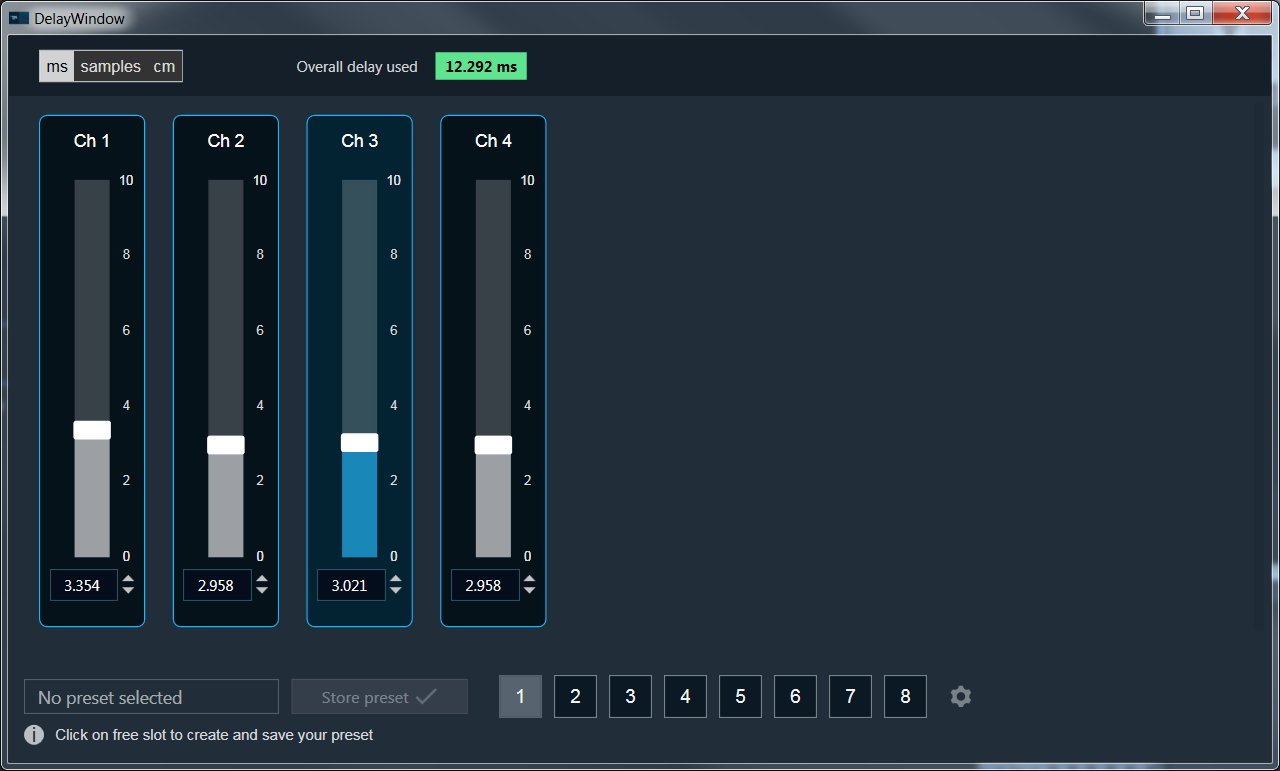

Native Panel: Delay Window
