Working with GTT Project

This section contains step-by-step instructions on how to use Global Tuning Tool. Some of the things you’ll learn and do in this guide are:

  • Create and configure the project
  • Build a template for the project
  • Create a signal flow design
  • Tune a signal flow design
  • Building a panel
  • Adding and configuring parameter sets

Use Case

  • Offline Tuning: Set tuning parameters for audio objects without connecting to device.

A picture containing text Description automatically generated

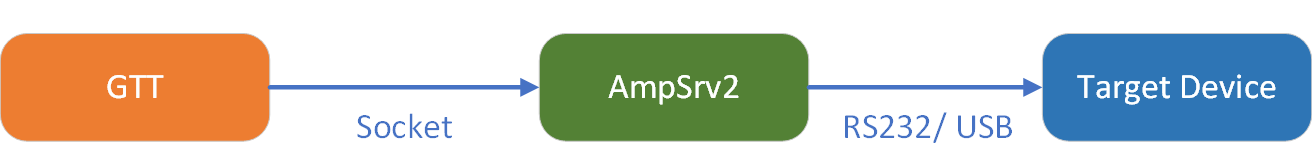

  • Real-Time Tuning of a Target Device: Live tuning connected to target device.

Graphical user interface Description automatically generated

  • Real Time Tuning of a IVP/VST: Live tuning connected to virtual device (IVP/Audio Mulch).

Graphical user interface Description automatically generated with low confidence

  • Socket: A socket is an interface type, that can send or receive data within a PC (from one application to another) or over a computer network from one PC to another.

In this case a socket connection is used to send data from GTT to AmpSrv2 and vice versa.

  • VST: Virtual Studio Technology is a software interface definition for audio plugins into music software by Steinberg company. Usually, these plugins are shipped as windows Dlls that can be used inside of a VST-Host (e.g. AudioMulch).

In this use case, AudioworX provides the file (xAFVirtualAmp.dll) that simulates the audio behavior of an amplifier or head unit.
