Limitations in Streaming

Below are the limitations associated with streaming.

  • Last selected update rate will be applied to all active streams.
  • The update rate is not configurable, you need to select one of the predefined values from the drop-down menu. It is not possible to enter a custom update rate.
  • Maximum buffer length allowed is 65536.
  • Streaming state variables are read only.
  • Zooming the graph with more than 8 active streams in parallel may cause performance issues.

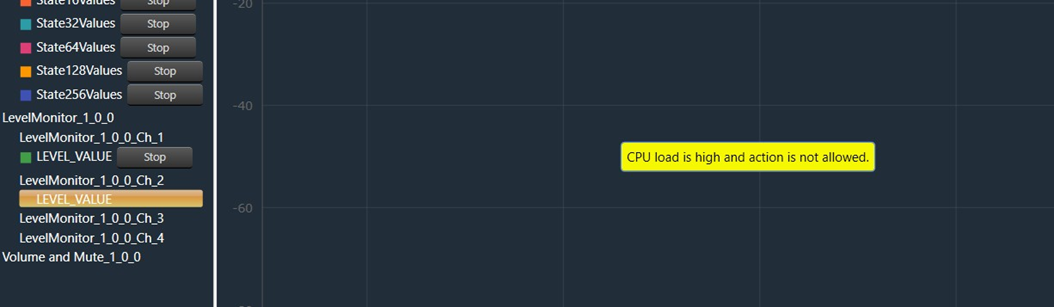

Opening multiple streaming windows may result in increased CPU load, potentially leading to performance issues. To avoid such concerns, you can configure the option to receive notifications and restrict streaming when CPU load exceeds a certain threshold.
By default, the maximum allowed CPU load is set to 100%. However, you can configure restrictions at specific load levels by modifying the “MaxAllowedCpuLoadForMonitoring” value in the configuration file.
