10.Feedback loop in Signal Flow #

GTT does not support feedback connection in signal flow. In the below example, it is not possible to connect “Gain_1_0_0” to ToneControlExtended_1_0_0” in Signal Flow, as this connection leads to loop. Hence if you try to connect any audio objects which will lead to a loop, a notification is shown that “Connection is not possible”.

For a legacy project.

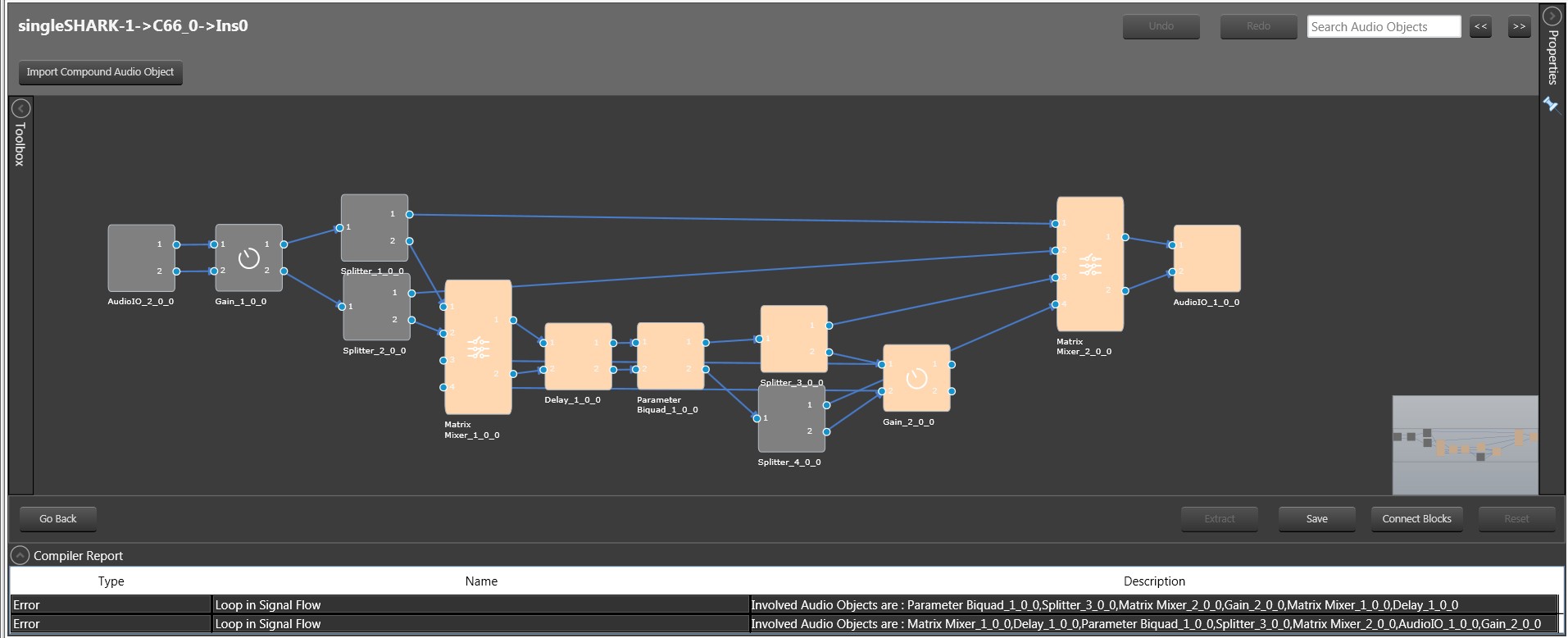

If a signal flow already has a feedback loop, the designer will indicate this and an error with the compiler will be reported. In order to save the signal flow, you must first remove any existing loops.

There is no restriction to add loops in control signals.
