3.7.Copy and Paste Operation #

The signal flow designer offers the handy capability of copy and paste, which can accelerate the design process. Follow the below steps to perform copy and paste operation:
  1. On the signal flow designer, select an object to copy or press CTRL+A to copy the entire signal flow design.

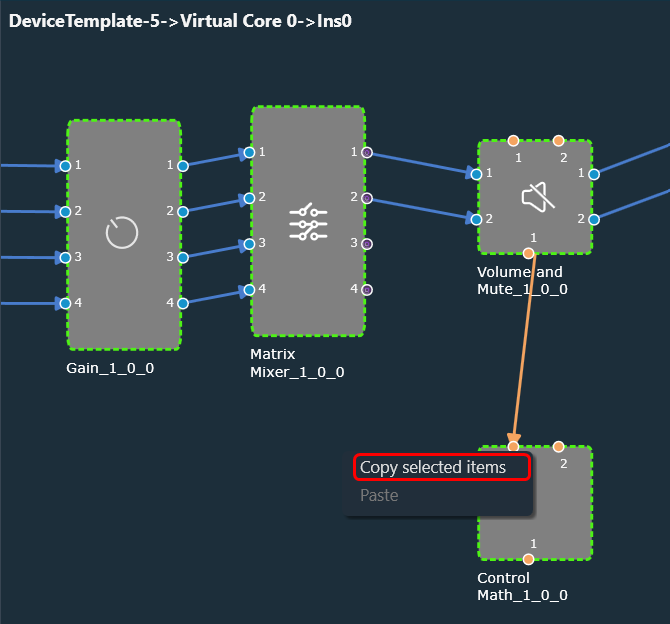

  2. Once the object or signal flow design is selected, you can either press CTRL+C or right-click on the designer area and choose “Copy selected objects” from the context menu.

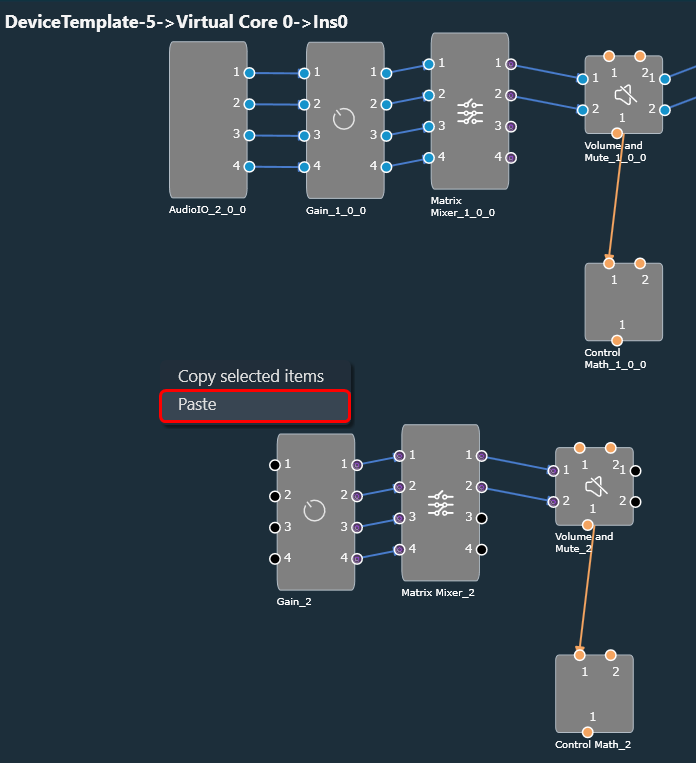

  3. After the object or signal flow design is copied, you can paste it into the same or a different framework instance by pressing CTRL+V or by selecting the “Paste” context menu item.
